Titanium and Titanium Alloy Pipe Supply

Titanium tube product overview

Alloy: Commercially pure titanium; α alloy, β alloy, α+β alloy

Titanium tube basic product types: seamless tube, welded tube, extruded tube

Featured titanium tube products: customized shape titanium tubes, thin-walled tubes, capillaries, bent tubes, coils tubes

Technical standards: ASTM B337, ASTM B338, ASME SB338

Note: The product performance and specifications we introduce are based on ASTM standards, but can also be customized according to other standards. Quick Quote

Specification range: OD: 6-200mm; WT: 0.5-10mm; L: cutting customized;

Additional services: custom design and processing; precision cutting; welding; bending; forming; surface treatment optimization

Surface treatment: polishing; pickling; anodizing; anti-corrosion coating

Chalco Titanium tube hot selling product types

Our titanium tube products include seamless tubes, welded tubes and extruded tubes. Whether it is standardized requirements or customized solutions, we can provide customers with high-quality titanium tube products and professional services.

• Seamless pipes are widely used in aerospace and high-end chemical industries due to their excellent pressure resistance and high purity.
• Welded pipes perform well in heat exchange equipment and industrial pipelines due to their flexible specification options and high-cost performance;
• Extruded tubing is a precision-molded process that provides exceptional dimensional accuracy and surface quality, making it ideal for medical devices and precision equipment.

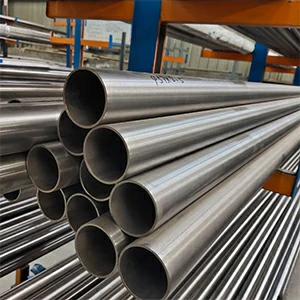

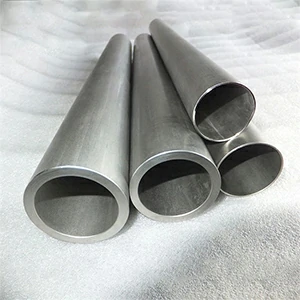

Titanium and titanium alloy seamless pipe

OD: 0.06-24.4 '' (1.53-620mm) WT: 0.016-1 '' (0.4-25.4mm)

Length: 707.7 '' (18000mm) all lengths can be cut

Hot selling alloys: Gr5, Ti6-6-2, Ti6-2-4-6, Ti Beta C, Ti-6Al-4V …

Specification: ASTM B337, ASTM B338, ASME SB861, AMS 4943, AMS 4944, AMS 4945

Titanium alloy seamless pipes are manufactured by integral extrusion or perforation process without any welds and can withstand high pressure and extreme environments.

Features: high strength, excellent corrosion resistance and uniform mechanical properties.

Application: Mostly used in scenarios with high strength and high-performance requirements

• Aerospace hydraulic systems: Grade 5 (Ti-6Al-4V); Grade 23 (Ti-6Al-4V ELI)
• Corrosive media transportation in the chemical industry: Grade 2; Grade 7 (Ti-0.2Pd); Grade 9 (Ti-3Al-2.5V)
• Marine engineering: Grade 2 (pure titanium); Grade 7 (Ti-0.2Pd); Grade 9 (Ti-3Al-2.5V)
• Medical devices such as artificial skeletons and implants: Grade 23 (Ti-6Al-4V ELI); Grade 5 (Ti-6Al-4V);

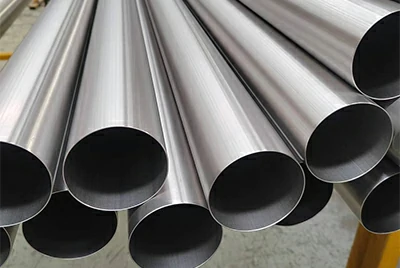

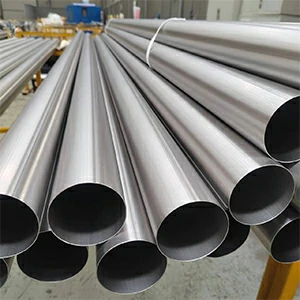

Titanium and titanium alloy welded pipes

ERW Welded: OD 0.315-4.02 '' (8-102mm); WT 0.02-0.047 '' (0.5-1.2mm)

EFW Welded: OD 4.02-48 '' (102-1220mm); WT 0.083-0.5 '' (2.1-12.7mm)

Hot selling alloys: Gr 2, Gr7 (Ti-0.2Pd) , Gr11 (Ti-0.2Pd)…

Specification: ASTM B337, ASTM B338, ASME SB862,

Titanium alloy welded pipes are made by welding process and are suitable for pipe manufacturing with larger size and thin-wall structure and are suitable for non-high pressure environment.

Features: flexible production, low processing cost, and excellent corrosion resistance.

Application: Widely used in low-pressure fluid delivery and corrosion-resistant scenarios

• Chemical Heat Exchanger: Grade 2; Ti-0.2Pd (Grade 7)
• Pharmaceutical Equipment: Grade 2; Ti-6Al-4V ELI
• Automobile exhaust system: Ti-6Al-4V; Ti-3Al-2.5V
• Environmental protection equipment pipeline: Grade 2; Ti-0.3Mo-0.8Ni (Grade 12)

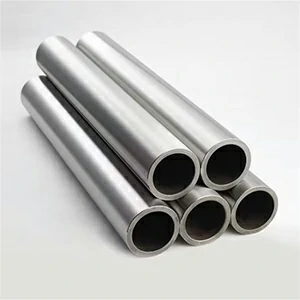

Titanium and titanium alloy extruded tube

OD: 0.98-8.27" (25-210mm); WT: 0.157-1.18" (4-30mm)

Length: 39.4-393.7" (1000-10000mm)

Hot selling alloys: Gr5 (Ti-6Al-4V), Gr12 (Ti-0.3Mo-0.8Ni), Ti-15Mo

The titanium alloy extruded tube is formed in one piece using an extrusion process. It has high density and precise size control capabilities and is suitable for scenarios with strict technical requirements.

Features: high density, excellent surface quality, uniform mechanical properties,

Application: Mostly used in high-end industries and special requirements

• High-end industrial equipment pipes: Grade 2; Grade 5 (Ti-6Al-4V)
• Pressure-resistant pipelines for offshore engineering: Grade 2; Grade 7 (Ti-0.2Pd); Grade 9 (Ti-3Al-2.5V)
• Nuclear power plant cooling system: Grade 2; Ti-3Al-2.5V; Grade 7 (Ti-0.2Pd)
• Aerospace engine parts: Grade 5 (Ti-6Al-4V); Grade 23 (Ti-6Al-4V ELI); Ti-3Al-8V-6Cr-4Zr-4Mo

Chalco high performance titanium tube: multiple specifications and shapes to choose from

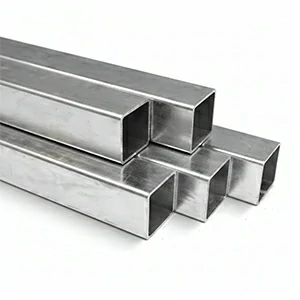

Titanium square tubing

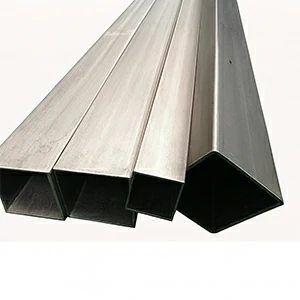

Titanium rectangular tube

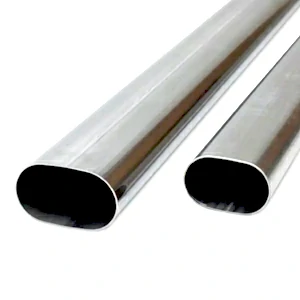

Oval titanium tubing

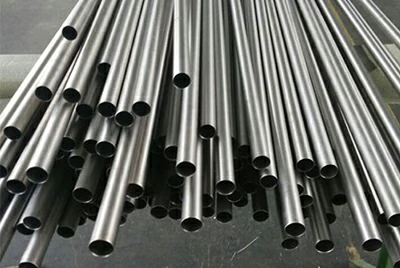

Thin wall titanium tubing

Designed specifically for lightweight requirements, it is widely used in aerospace and medical equipment fields.

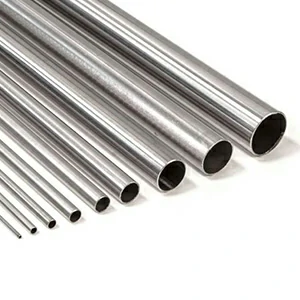

Titanium capillary tubing

Widely used in precision fluid delivery, laboratories and medical industries.

Titanium micro tubing

Tiny diameter titanium tubes for use in precision instruments and microfluidics.

Mandrel bending Ti tubing

Manufactured using mandrel bending technology for complex shapes and high strength applications.

Titanium tubing coil

Titanium tubes in rolled form for heat exchangers, cooling systems and piping applications.

Titanium spiral pipe

Made of titanium tubes with diameters from 8 to 65 mm, they are suitable for temperature control of chemical baths in the chemical, electroplating and metal finishing industries.

Titanium threaded tube

Titanium alloy threaded pipe has excellent corrosion resistance and high strength, and is suitable for occasions requiring quick connection and sealing performance.

Flexible bellows

It has excellent corrosion resistance, oxidation resistance and high strength, and is widely used in fluid delivery systems in high temperature and high-pressure environments.

Titanium alloy finned tube

Combining the high strength and corrosion resistance of titanium alloy with the efficient heat exchange performance of fins, it is used in high-end industries such as seawater cooling, chemical industry, aerospace, etc.

All-alloy series titanium and titanium alloy pipes

Chalco can produce and supply all titanium and titanium alloy pipe products under ASTM standards. The following is an introduction to the hot-selling alloy products and their features. For other alloys and products, please contact sales personnel for consultation.

Titanium tube - commercially pure titanium, CP Ti

Commercially pure titanium (CP titanium) is the most common titanium tube material, composed mainly of titanium. With excellent corrosion resistance and good ductility, it's widely used in chemical, marine, and low-temperature environments.

Contact us now

Titanium Alloy Tubes - Alpha Alloy, Beta Alloy, Alpha-Beta Titanium

Titanium alloy tubes, classified as α, β, and α-β alloys, offer higher strength and broader applications than commercially pure titanium. They're valued in aerospace, military, and petrochemical industries for their superior performance and reliability.

Contact us now

Other high-end titanium alloy tubes

We offer high-end customized titanium alloy tubes known for exceptional performance in aerospace, deep-sea exploration, and industrial equipment. These tubes excel in strength, heat resistance, and corrosion resistance for demanding environments.

Contact us now

• Ti-6Al-6V-2Sn (Titanium 6-6-2)
• Ti-6Al-2Sn-4Zr-2Mo (Titanium 6-2-4-2)
• Ti-6Al-2Sn-4Zr-2Mo-0.1Si
• Ti-6Al-2Sn-4Zr-6Mo (Titanium 6-2-4-6)
• Ti-6Al-2Sn-2Zr-2Mo-2Cr-0.15Si
• Ti-6Al-7Nb
• Ti-5Al-2.5Sn ELI (Titanium 5-2.5 ELI)
• Ti-15V-3Cr-3Al-3Sn (Titanium 15-3-3-3)
• Ti-10V-2Fe-3Al (Titanium 10-2-3)
• Ti-8Al-1Mo-1V
• Ti-5Al-2Zr-2Sn-4Mo-4Cr (Ti-17)
• Ti-4.5Al-3V-2Mo-2Fe (SP-700)
• Ti-4Al-4Mo-2Sn-0.5Si (Ti-550)

One-stop shopping experience for titanium tube products and overall project solutions

We are committed to providing customers with one-stop titanium tube procurement services, from product selection to overall project solutions, to provide comprehensive support for your engineering and application needs. Whether it is standard specifications or customized requirements, we can meet them, making your procurement more efficient and convenient.

Complete inventory

We have a rich stock of titanium tubes, covering a variety of specifications and materials, including CP Ti, Grade 5, Grade 9, Ti-6Al-4V ELI, etc., to meet the diverse needs from industrial applications to medical fields. Sufficient stock and fast delivery ensure that your project progress is not delayed.

Production capacity

We have strong titanium tube production capabilities and support a variety of processing methods:

• Precision tube processing: outer diameter range 4mm~200mm, wall thickness can be up to 0.5mm.
• Customized service: produce special-shaped tubes or extra-long tubes according to customer needs.
• Strict quality control: Comply with international standards such as ASTM and AMS to ensure product performance and consistency.

Surface processing

We offer a variety of surface processing services to meet different application needs:

• Polishing: achieve mirror effect, suitable for high-end medical and decorative fields.
• Sandblasting: Increases surface roughness to enhance coating adhesion.
• Pickling: Remove the oxide layer to ensure a clean surface.
• Anodizing: Available in a variety of colors and enhanced corrosion resistance.

Supporting accessories products

For the convenience of customers, we also provide supporting products related to titanium tubes:

• Titanium flanges, titanium joints and titanium bolts achieve efficient connection.
• Extended products such as titanium sheets and titanium bars are used in multiple scenarios.
• Anti-corrosion coatings and sealed components improve system durability.

Elbow

Flange

Tee or Cross fitting

External thread welding plug

Internal thread welding plug

Titanium alloy spring

Slip joint sleeve

Bendable sleeve

Reducer

Chalco titanium tube product industry purchase guide

Chalco offers a comprehensive range of titanium alloy products, including seamless tubes, welded tubes, extruded tubes and titanium tubes of all shapes and sizes in all alloy series, serving a wide range of industries such as aerospace, automotive, chemical, medical, offshore engineering and high-end consumer products. Whether it is high strength requirements, corrosion resistance, or special tube shapes, we can provide you with tailor-made titanium alloy solutions.

Titanium tubes for the aerospace industry

Alloys: Ti 6Al/4V (Grade 5), Ti 3Al/2.5V

Product recommendation:

Seamless pipes, welded pipes, extruded pipes

Thin-walled tubes

Bend pipe

Contact us now

Features: high strength, good corrosion resistance and fatigue resistance, suitable for high temperature and high-pressure environment.

Application areas: aircraft engine components, fuselage structures, missiles, aircraft, etc.

Purchase points:

• Ensure that the high strength and high toughness of the material meet the structural safety requirements.
• It is necessary to select an alloy with good high temperature stability and oxidation resistance.

Titanium tubes for the automotive industry

Alloys: Ti 6Al/4V, Ti 5Al/2.5Sn

Product recommendation:

Seamless pipes, welded pipes, extruded pipes

Thin-walled tubes

Capillary tubes

Contact us now

Features: Reduce weight, improve fuel efficiency, and have strong corrosion resistance.

Applications: Engine components, exhaust systems, body structures, wheels, etc.

Purchase points:

• Choose titanium alloy for high temperature environments to ensure long-term durability.
• Combining strength and weight-optimized material selection improves performance while reducing vehicle weight.

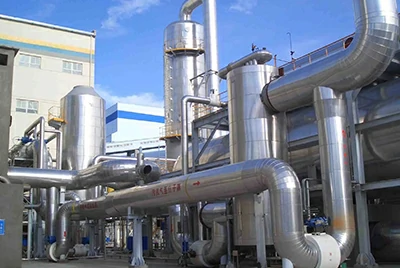

Titanium tubes for chemical industry

Alloys: Ti 0.3Mo/0.8Ni, Ti 6Al/4V

Product recommendation:

Seamless pipes and welded pipes

Extruded Tubing

Square tubes and rectangular tubes

Contact us now

Features: Excellent corrosion resistance, especially tolerance to seawater, acid and alkali environments.

Applications: Reactors, heat exchangers, pipelines, etc.

Key points for purchase:

• The corrosion resistance of titanium alloy is the key to selection, especially in strong acid and alkali environments.
• When selecting, consider the operating temperature and pressure of the equipment.

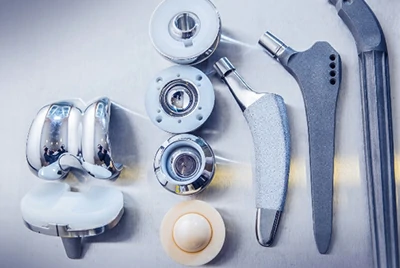

Titanium tubes for medical industry

Alloys: Ti 6Al/4V (Grade 5), Ti 6Al/4V ELI

Product recommendation:

Seamless pipes and welded pipes

Capillaries

Thin-walled tubes

Contact us now

Features: good biocompatibility, strong corrosion resistance, not easy to cause allergic reactions.

Applications: artificial joints, dental implants, orthopedic implants, etc.

Purchase points:

• It is necessary to select alloys with high purity and good biocompatibility.
• Ensure the alloy has sufficient strength and corrosion resistance to cope with long-term use in the body.

Titanium tubes for high-end consumer products

Alloy: Ti 6Al/4V, Ti Grade 2 (CP-Ti)

Product recommendation:

Seamless, welded, and extruded tubes

Bent tubes, square tubes, rectangular tubes

Thin-walled tubes

Contact us now

Features: Exquisite appearance, lightweight and durable, with a modern feel.

Applications: high-end watches, jewelry, eyeglass frames, sports equipment, etc.

Purchase points:

• The requirements for appearance and processing accuracy are high, and the surface finish of the alloy needs to be considered when selecting materials.
• Titanium alloy is lightweight and durable, making it ideal for luxury goods and high-end custom items.

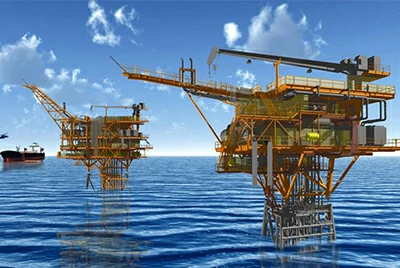

Titanium pipe for offshore engineering

Alloys: Ti 0.3Mo/0.8Ni, Ti 6Al/4V

Product recommendation:

Seamless pipes, welded pipes

Extruded pipe

Bend pipe

Contact us now

Features: It has excellent corrosion resistance and can resist the erosion of seawater.

Applications: offshore platforms, submersibles, marine pipelines, etc.

Purchase points:

• Titanium alloys need to have excellent resistance to salt spray corrosion to cope with harsh marine environments.
• The strength and fatigue resistance of the material must also be considered to ensure that it can withstand long-term use in a marine environment.

Titanium tubes for sports equipment

Alloys: Ti Grade 5 (6Al/4V), Ti Grade 2 (CP-Ti)

Product recommendation:

Seamless pipes, welded pipes, extruded pipes

Square tubes and rectangular tubes

Thin-walled tubes and bent tubes

Contact us now

Features: Lightweight, durable, with good elasticity, suitable for high-performance sports equipment.

Applications: golf clubs, bicycle racks, skis, etc.

Purchase points:

• Special attention needs to be paid to the strength-to-weight ratio of alloys to improve the performance of sports equipment.
• When choosing, consider the material's resilience and impact resistance to ensure your gear is durable and comfortable.

Things to note when purchasing titanium tubes

Q1: How to choose the appropriate titanium tube model?

Choose the appropriate titanium tube model according to specific use:

• If corrosion resistance is required, Grade 1 and Grade 2 are recommended for use in chemical equipment and marine environments.
• For applications that require higher strength and lightness, such as aerospace and medical devices, Grade 5 (Ti-6Al-4V) can be selected.
• For extreme environments or high-performance equipment, it is recommended to choose high-end titanium alloy tubes, such as Ti-6Al-6V-2Sn or Ti-15V-3Cr-3Al-3Sn.

Q2: How to determine the specifications of titanium tubes?

The specifications of titanium tubes (outer diameter, wall thickness, length) should be determined according to the project design requirements. If you are not sure about the required specifications, our technical team can provide you with professional advice and support customized services to meet special needs.

Q3: How to choose a titanium supplier?

When choosing a titanium supplier, you should pay attention to the following points:

• Certification: Ensure that suppliers meet international quality standards such as ISO or ASTM.
• Product range: Give priority to suppliers with a full range of products to facilitate one-stop purchasing.
• Production capacity: Suppliers should have strong production capacity to meet large-volume or customized needs.
• Service support: Good pre-sales consultation and after-sales service are important considerations.

Q4: How long is the delivery time of titanium tubes?

Conventional titanium tubes are usually in stock and can be shipped quickly. For customized specifications, the delivery cycle is determined by the production process and order quantity. We will provide a clear delivery commitment before placing an order.

Q5: How to ensure the quality of titanium tubes?

Titanium tube products strictly comply with international standards (such as ASTM, AMS, etc.) and undergo multiple quality inspection processes, including dimensional inspection, mechanical property testing and ultrasonic testing, flattening test, hydrostatic test, air pressure test, expansion test, NDT/NDE test. Chalco strictly follows the above process to ensure the quality of each titanium tube.

Q6: What factors affect the price of titanium tubes?

• Material: Different titanium alloys have different raw material costs. For example, the price of Grade 5 is usually higher than that of Grade 2.
• Specifications: Large diameter or thick wall titanium tubes are more expensive to produce.
• Processing requirements: Customized processing and surface treatment will add additional costs.
• Market Fluctuations: Prices of titanium raw materials are subject to global market supply and demand and may fluctuate.
