Comprehensive Guide to 6Al-4V Grade 5 Titanium Sheet Plate

6Al-4V Titanium Alloy, also known as Grade 5 Titanium Alloy, is one of the most widely used α-β dual-phase alloys in the titanium industry. Composed of approximately 90% titanium, 6% aluminum, and 4% vanadium, its optimized alloy composition provides an exceptional strength-to-weight ratio and excellent corrosion resistance. For detailed parameters, please refer to the Material Data Sheet.

Grade 5 Titanium Alloy is used in the aerospace industry for high-strength structural components and engine parts and in the medical field, where its biocompatibility makes it widely applied in implants and surgical instruments. Furthermore, its high melting point and good weldability allow it to perform exceptionally well in high-temperature and high-risk projects, making it an indispensable material in modern manufacturing.

With technological advancements, the application prospects of Ti-6Al-4V in shipbuilding, the automotive industry, and high-end sports equipment are increasingly broad, reinforcing its position as a top-tier titanium alloy in the market.

Below are some dimensions of Ti-6Al-4V Grade 5 available from Chalco:

Ti-6Al-4V Grade 5 titanium sheet plate specifications

• ASTM B265
• ASME SB-265
• AMS 4902
• AMS-T-9046
• MIL-T-9046
• DIN 65039
• ASTM F1472

Popular sizes of Ti-6Al-4V Grade 5 titanium sheet plate

Here are the dimensions of our hot-selling titanium sheets and plates. As a professional titanium supplier, we provide cutting services for non-standard sizes. If you require other thicknesses or specifications, we offer custom titanium plates tailored to your needs.Quick Quote

Product types of Ti-6Al-4V grade 5 titanium plate

Custom services for Ti-6Al-4V grade 5 titanium sheet plate

Chalco offers comprehensive customization services for titanium plates, tailored to meet diverse needs in dimensions, grades, and surface treatments. Leveraging advanced equipment and strict quality control, we ensure each custom titanium plate meets the highest standards, catering to various professional applications.

Wide Range of Dimensions: Custom sizes are available, from thin sheets (0.5mm to 5mm) to thick plates (6mm to 100mm), meeting diverse project requirements.

Variety of Grades: In addition to Ti-6Al-4V Grade 5, we offer other titanium grades, such as Grade 1, 2, 3, 4, 6AL-4V Eli, Ti 6242, and Ti 6246, ensuring optimal performance for specific applications.

Surface Treatment Options: Choose from polishing, grinding, acid etching, painting, brushing, and sandblasting to enhance corrosion resistance and aesthetic appeal.

Strict Standards and Certifications: All custom titanium plates comply with international standards, including ASTM B265, ASTM SB265, AMS 4911, and DIN 17860, ensuring high quality and reliability.

Features of Ti-6Al-4V grade 5 titanium sheet plate

Overview of Ti-6Al-4V Grade 5 Titanium Characteristics

Overview of CP Grade 2 Titanium Characteristics

• High Strength and Heat Resistance: Offers excellent strength and heat resistance, capable of withstanding temperatures up to 600°F, with strength comparable to steel but 40% lighter.
• Superior Corrosion Resistance: A dense titanium dioxide layer on the surface provides exceptional corrosion resistance, protecting against seawater and most chemicals.
• Machining and Welding: Easy to weld and heat form, with a machinability rating of 22%. Recommended machining parameters include low cutting speeds, high feed rates, and ample cutting fluid.
• Lightweight and Biocompatibility: Grade 5 titanium plates are nearly 50% lighter than steel, non-magnetic, and biocompatible, making them ideal for medical implants and precision tools.
• Low-Temperature Performance: Strength increases at low temperatures while maintaining good ductility and toughness, suitable for cryogenic vessels and manned spacecraft.

For more details, please refer to the material properties of Ti-6Al-4V Grade 5.

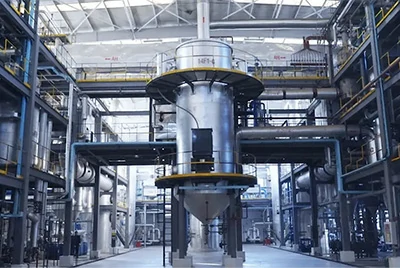

Typical applications of Ti-6Al-4V grade 5 titanium sheet plate

Chalco - premium supplier of titanium plates

• Advanced Equipment and Technology: Utilizing state-of-the-art equipment from Germany and Japan, combined with proprietary innovations, Chalco ensures titanium plates with high precision and exceptional performance.
• Strict Quality Certifications: Certified by international standards such as AS 9100 and ISO 9001, guaranteeing the highest quality standards for every batch.
• Comprehensive Product Range: Offering a full range of titanium plates from ultra-thin 0.3mm to ultra-thick 101.6mm, catering to diverse industry needs.
• Custom Services & Timely Delivery: Provides both standard and custom dimensions, with flexible production schedules to ensure on-time delivery, avoiding project delays.
• Competitive Pricing & Comprehensive Support: Through precise dimension control and continuous production optimization, Chalco delivers competitive pricing with robust technical support and after-sales services, making it a reliable long-term partner.

Material properties of Ti-6Al-4V grade 5

Density

Ti-6Al-4V Grade 5 titanium has a density approximately 50% lower than nickel-based alloys and stainless steel, making it highly desirable for applications requiring a high strength-to-weight ratio. It is commonly used in the annealed state and operates effectively at temperatures up to 400°C. For sections under 4 inches thick, heat treatment can achieve higher strength.

Melting point

With a melting point about 400°F higher than steel and 2000°F higher than aluminum, Ti-6Al-4V Grade 5 is well-suited for operations in high-temperature environments.

Corrosion resistance

Ti-6Al-4V Grade 5 exhibits exceptional corrosion resistance by spontaneously forming a dense titanium dioxide (TiO₂) layer on its surface. It is particularly effective in seawater and humid conditions, making it an ideal choice for offshore and subsea oil and gas operations.

Resistance to Acidic Environments: Performs well in most acidic conditions but can be vulnerable to red fuming nitric acid and hydrofluoric acid. Adding palladium, ruthenium, or palladium-nickel can significantly enhance corrosion resistance in these extreme environments.

Stress Corrosion Cracking: In hot saline environments, stress corrosion cracking may occur, requiring controlled processing to mitigate this risk.

Heat treatment

Heat treatments primarily focus on annealing to relieve stress and improve ductility and toughness. Common methods include:

Mill Annealing (MA): General-purpose annealing.

Recrystallization Annealing (RA): Improves mechanical properties by stabilizing the microstructure.

Beta Annealing (BA): Conducted above the beta-transus temperature for enhanced strength and creep resistance.

Additional strengthening can be achieved through solution treating and aging (STA) or over-aging (STOA), optimizing strength, toughness, and dimensional stability for complex manufacturing processes.

Machinability

Cold Machining: Similar to austenitic stainless steel, requiring low cutting speeds, high feed rates, and adequate coolant for efficient machining. Its low modulus of elasticity may lead to spring-back during cold work, making it ideal for drawing and extrusion operations.

Hot Machining: Performed at 870°C to 980°C, generating the desired microstructure while maintaining lower yield strength and hardness for improved ductility. Forming methods like hydroforming, stretch forming, and drop hammer forming reduce spring-back and forming force.

Formability

Ti-6Al-4V Grade 5 offers excellent formability for both hot and cold forming, similar to 300-series stainless steel. Applications include bending, deep drawing, stretch forming, and spinning. Post-solution treated titanium can be cold formed and subsequently aged to achieve strengths of 1300 to 1500 MPa, ideal for high-precision industrial applications.

Weldability

Ti-6Al-4V Grade 5 demonstrates good weldability under standard conditions with inert gas shielding to prevent embrittlement. Common methods include:

TIG Welding (Gas Tungsten Arc Welding): Preferred for most applications.

GMAW Welding (Gas Metal Arc Welding): Suitable for thicker sections.

Additional welding methods, such as plasma arc, electron beam, laser, resistance, and diffusion welding, are also applicable. Post-weld heat treatment and the use of Ti-6Al-4V filler material are recommended for optimal joint quality.

For a comprehensive guide to titanium alloy welding, click here.

If you want to have a comprehensive understanding of the overall welding performance of titanium alloys.

Ti-6Al-4V grade 5 titanium material data sheet

Equivalent names

Chemical composition

Physical properties

Mechanical properties

Electrical properties

Thermal properties

CP Ti-6Al-4V grade 5 titanium additional information

Ti-6Al-4V Grade 5 vs Ti-6Al-4V ELI Grade 23

Ti-6Al-4V Grade 5

Widely used in aerospace, automotive, and industrial fields.

Known as a "workhorse" alloy due to its high strength, excellent corrosion resistance, and weldability.

Ti-6Al-4V ELI (Extra Low Interstitial)

Lower levels of oxygen, nitrogen, and carbon improve toughness and crack resistance.

Specifically designed for high-performance applications, such as medical implants requiring superior biocompatibility and resistance to fracture.

Key Differences

Grade 23: Ideal for medical applications demanding high toughness and biocompatibility.

Grade 5: Better suited for industrial and aerospace applications where strength and corrosion resistance are priorities.

Ti-6Al-4V Grade 5 vs Ti-3Al-2.5V Grade 9

Ti-6Al-4V Grade 5

Contains ~6% aluminum and ~4% vanadium.

Offers exceptional strength and corrosion resistance.

Frequently used in high-load structural components for aerospace, medical implants, and precision manufacturing.

Ti-3Al-2.5V Grade 9

Contains ~3% aluminum and ~2.5% vanadium.

Provides superior ductility and weldability, making it suitable for applications requiring greater formability, such as automotive parts, marine engineering, and sporting equipment.

Key Comparison

Grade 9: Ideal for complex forming and high-ductility requirements.

Grade 5: Preferred for applications requiring maximum strength and corrosion resistance.

Ti-6Al-4V Grade 5 vs Ti-6Al-6V-2Sn

Ti-6Al-4V Grade 5

Composed of ~6% aluminum and ~4% vanadium.

Features balanced properties of strength, corrosion resistance, and weldability.

Ti-6Al-6V-2Sn

Adds ~2% tin to the aluminum and vanadium base.

Enhanced high-temperature strength and creep resistance, making it ideal for aerospace engine components and industrial equipment operating in extreme environments.

Key Comparison

Ti-6Al-6V-2Sn: Superior for high-temperature and high-stress applications.

Ti-6Al-4V Grade 5: Offers more balanced performance and versatility across a wide range of uses.
