Grade 2 (UNS R50400) Titanium Tube
Grade 2 titanium tube product overview
Equivalent Names:
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Titanium Gr. 2 | 3.7035 | R50400 |
Thread requirements: According to ASME B1.20.1.Sch-10S and Sch-10 standards, threading is not allowed for Grade 2 titanium seamless pipes.
Additional services: custom design and processing; precision cutting; welding; bending; forming; surface treatment optimization
Surface treatment: polishing; electrolytic polishing; pickling; anodizing; anti-corrosion coating; section treatment; passivation
Specification: ASTM B 338, ASTM B 861, ASTM B862, ASME SB 338, ASME SB, 861, VD TÜV BL. 230/3, DIN 17861
Note: The product performance and specifications we introduce are based on ASTM standards, but can also be customized according to other standards. Welcome to consult according to your needs.
Chalco Titanium Grade 2 pipe product display
-
Titanium Grade 2 Seamless Pipe
No welded joints, high strength, corrosion resistance, widely used in aerospace and chemical fields.
-
Titanium Grade 2 Drawn Tube
Drawn and cold-worked, it suits high-precision, lightweight electronic and medical devices.
-
Titanium Grade 2 Welded Pipe
Manufactured using welding technology, it is suitable for oil, gas and chemical pipeline systems.
-
Titanium Grade 2 Thin Wall Tube
With its light weight and thin-wall design, it is widely used in aerospace, automobile and high-precision equipment.
-
Titanium Grade 2 Electropolished Tubes
After electrolytic polishing, the surface is smooth and corrosion-resistant, suitable for medical equipment and food processing fields.
-
Titanium Grade 2 High Pressure Pipe
Specially designed for high pressure environment, it is often used in petrochemical and nuclear energy fields and has good pressure resistance.
-
Titanium Grade 2 Coils
It is flexible and ductile and is often used in heat exchangers and cooling systems.
-

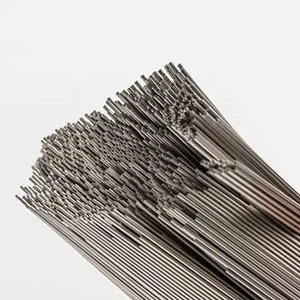

Titanium Grade 2 Capillary
Fine diameter tubing for precise fluid control and biomedical applications.
Chalco Titanium Grade 2 pipe chemical composition
Chalco Grade 2 titanium tubes are made of pure titanium material, and the chemical composition meets the standard requirements. The main component of Grade 2 titanium is titanium (Ti), which is usually greater than 99%, and contains trace amounts of aluminum, iron, oxygen and other elements. The low oxygen content and other impurities of Grade 2 titanium tubes give it excellent corrosion resistance and strength, and it is the most commonly used type of commercial titanium tube.
| Chemical composition (nominal) % | ||||
|---|---|---|---|---|
| N | H | O | Fe | C |
| ≤0.03 | ≤0.015 | ≤0.25 | 0.30 | 0.08 |
Chalco Titanium Grade 2 pipe mechanical properties
| Year Strength: | 40 ksi min |
|---|---|
| Tensile Strength: | 50 ksi min |
| Elongation (min 2"): | 20% |
| Hardness (Rockwell B Scale) | 80 HRB max |
Chalco Titanium Grade 2 pipe pressure rating
| Tube OD (in.) | Wall Thickness of Tube (inches) | |||||||
|---|---|---|---|---|---|---|---|---|
| .028 | .035 | .049 | .065 | .083 | .095 | .109 | .120 | |
| Working Pressure (psig) | ||||||||
| 1/8 | 7900 | 10100 | ||||||
| 1/4 | 3700 | 4800 | 7000 | 9500 | ||||
| 5/16 | 3700 | 5400 | 7300 | |||||
| 3/8 | 3100 | 4400 | 6100 | |||||
| 1/2 | 2300 | 3200 | 4400 | |||||
| 3/4 | 2200 | 3000 | 4000 | 4600 | ||||
| 1 | 2200 | 2900 | 3400 | 3900 | 4300 | |||
Chalco Titanium Grade 2 pipe manufacturing and service provision
Grade 2 titanium alloys cold form well using standard methods. It is easy to machine, but special care must be taken to keep the tool sharp and to use plenty of coolant. As with machining austenitic stainless steels, cuts should be deep and continuous, and feeds and speeds slow.
The following are the products and services that Chalco Titanium can provide. We offer a variety of high-quality titanium tubes and customized solutions to ensure that your needs are met. Whether it is standard size or custom specifications, we are committed to providing you with a convenient and professional shopping experience, allowing you to enjoy efficient and satisfactory service.
- Diverse Sizes and Types: Grade 2 titanium tubes are available in a variety of sizes and types starting from 3.0 mm, including drawn, seamless rolled and longitudinally welded tubes.
- Stock and Custom Options: Titanium tubing is available in common sizes directly from stock or custom made to your specifications.
- Common specifications: We offer titanium tubes that comply with standards such as ASTM B 861, ASTM B 862, NACE, NORSOK, and VD TÜV sheet 230/2.
- Customization and certification services: We customize titanium tubes according to customer requirements and cooperate with certification agencies such as TÜV Rheinland and DNV to ensure that the products meet relevant standards.
- Consulting service: Provide professional titanium tube purchase consultation to help customers understand the relevant knowledge and specification requirements of titanium tubes.
- Long-term supply agreements: We provide framework agreements for customers with long-term supply needs, guaranteeing price and quantity within the agreed period.
- Professional customer support: A dedicated service center is available to answer all questions regarding semi-finished products and special materials.
Chalco Titanium Grade 2 pipe product advantages
- Strong corrosion resistance: suitable for various harsh environments, especially chemical, marine and oil and gas industries
- Good biocompatibility: non-toxic, no allergic reaction, widely used in the medical field, especially dental and orthopedic implants
- Lightweight and high strength: It is lighter than steel and has high strength, making it widely used in aerospace, automobile manufacturing and sporting goods
- Easy to process: Good ductility and processing performance enable titanium tubes to be precisely processed according to needs, such as bending, welding, etc.
Chalco Titanium Grade 2 pipe product cooperation areas
- Aerospace: Structural components for aircraft and spacecraft
- Automotive industry: used in automotive parts, especially in areas where lightweight and corrosion resistance are required
- Medical industry: used in medical implants and devices such as artificial joints, bone screws and dental implants
- Construction industry: building materials and structural parts used in highly corrosive environments
- Chemical and energy industries: used in reactors, pressure vessels, piping systems, etc.
- Sporting goods: high-performance sports equipment such as bicycle frames and golf clubs
Chalco Titanium Grade 2 pipe stock size reference
| Stock Wall thickness of Grade 2 Ti Alloy Tube | |||
|---|---|---|---|
| Types of Grade 2 Titanium Tube | Out diameter (OD) | Wall thickness | Length |
| NB Sizes (in stock) | 1/8” ~ 8” | SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160 | Up to 6 Meters |
| Grade 2 Titanium Seamless Tube (Custom Sizes) | 5.0mm ~ 203.2mm | As per requirement | Up to 6 Meters |
| Grade 2 Titanium Welded Tube (in Stock + Custom Sizes) | 5.0mm ~ 1219.2mm | 1.0 ~ 15.0 mm | Up to 6 Meters |
| Titanium Grade 2 round tube sizes | |
|---|---|
| Wall Thickness | Titanium Tube Sizes ( O.D.) |
| .010 | 1/16”, 1/8”, 3/16" |
| .020 | 1/16”, 1/8”, 3/16”, 1/4”, 5/16”, 3/8" |
| .012 | 1/8" |
| .016 | 1/8" , 3/16" |
| .028 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2" |
| .035 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
| .049 | 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
| .065 | 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3" |
| .083 | 1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3" |
| .095 | 1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2" |
| .109 | 1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2" |
| .120 | 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3" |
| .125 | 3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4" |
| .134 | 1" |
| .250 | 3" |
| .375 | 3 1/2" |
| Titanium Gr.2 Square Pipe Schedule List | |
|---|---|
| 1/8" IPS (.405"O. D.) | 3 1/2" IPS (4.000"O. D.) |
| SCH 40, 80 | SCH 10, 40, 80, 160, XXH |
| 1/4" IPS (.540"O. D.) | 4" IPS (4.500"O. D.) |
| SCH 10, 40, 80 | SCH 10, 40, 80, 160, XXH |
| 3/8" IPS (.675"O. D.) | 5" IPS (5.563"OD) |
| SCH 10, 40, 80 | SCH 10, 40, 80, 160, XXH |
| 1/2" IPS (.840"OD) | 6" IPS (6.625"OD) |
| SCH 5, 10, 40, 80, 160, XXH | SCH 5, 10, 40, 80, 120, 160, XXH |
| 3/4" IPS (1.050"OD) | 8” IPS (8.625"OD) |
| SCH 10, 40, 80, 160, XXH | SCH 5, 10, 40, 80, 120, 160, XXH |
| 1" IPS:(1.315′OD) | 10" IPS (10.750"OD) |
| SCH 5, 10, 40, 80, 160, XXH | SCH 10, 20, 40, 80 (.500), TRUE 80(.500) |
| 1-1/4" IPS (1.660"O. D.) | 12" IPS (12.750"O. D.) |
| SCH 10, 40, 80, 160, XXH | SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500) |
| 1-1/2" IPS (1.900"O. D.) | 14" IPS (14.000"O. D.) |
| SCH 10, 40, 80, 160, XXH | SCH10 (.188), SCH40 (.375) |
| 2" IPS (2.375"O. D.) | 16" IPS (16.000"O. D.) |
| SCH 10, 40, 80, 160, XXH | SCH10(.188), SCH40(.375) |
| 2 1/2" IPS (2.875"OD) | 18" IPS (18.000" OD) |
| SCH 10, 40, 80, 160, XXH | SCH-40 (.375) |
| 3" IPS (3.500"OD) | |
| SCH 5, 10, 40, 80, 160, XXH | |
FAQs on purchasing Titanium Grade 2 pipe
What are the advantages of Chalco Grade 2 titanium tube?
Chalco Grade 2 titanium tube has excellent strength, corrosion resistance and biocompatibility, and is widely used in aerospace, medical, construction and other industries. Its high temperature resistance and harsh environment resistance make it outstanding in industrial applications. At the same time, Grade 2 titanium tube is lightweight and high in strength, making it the first choice for many industries with high material performance requirements.
How to customize the size of Grade 2 titanium tube?
We provide custom design services, customers can choose the size, wall thickness, length, etc. according to specific needs. Our titanium tube products comply with international standards such as ASTM, ASME and AMS, and can be customized according to different application requirements. If you have special specifications, please feel free to contact us and we will provide corresponding solutions.
Is Grade 2 titanium tube suitable for marine environment?
Yes, the corrosion resistance of Grade 2 titanium tubes is particularly suitable for marine environments and can resist the corrosive effects of seawater. Due to its low electrical conductivity and naturally formed passive oxide layer, Grade 2 titanium tubes have a very low corrosion rate in seawater and are suitable for use in marine equipment and other harsh environments.
What processing options are there for Grade 2 titanium tubes?
We offer a variety of processing options for Grade 2 titanium tubes, including:
- Precision cutting: Ensure that the titanium tube meets the size and accuracy required by the customer and is suitable for various customized needs.
- Bending and forming: Bend or form the titanium tube according to design requirements, suitable for complex structures and shapes.
- Welding: Grade 2 titanium tubes can be connected by welding methods such as MIG and TIG to meet different application requirements.
These processing options can help customers make standard titanium tube parts according to actual needs.
FAQs on Surface Treatment of Grade 2 Titanium Tube
What are the surface treatment methods for Grade 2 titanium tube?
Grade 2 titanium tubes can be subjected to a variety of surface treatments to meet different application requirements:
- Polishing: Improve the smoothness and appearance of titanium tubes and make their surface more beautiful.
- Pickling: removes surface impurities and improves corrosion resistance, suitable for use in general environments.
- Anodizing: By forming a strong oxide layer on the surface of the titanium tube, it enhances corrosion resistance and hardness and is suitable for harsh environments.
- Anti-corrosion coating: Provides an additional protective layer for titanium tubes, especially suitable for extreme environments such as chemical and marine, effectively preventing corrosion.
The choice of surface treatment depends on the use environment and requirements of the titanium tube to ensure maximum performance.
Are there any special requirements for welding Grade 2 titanium tubes?
The welding of Grade 2 titanium tubes requires the use of appropriate welding methods, such as MIG (gas metal arc welding) and TIG (tungsten inert gas welding). During the welding process, inert gas protection is essential to prevent oxygen from causing oxidation and embrittlement of the titanium welding area. For the welding of titanium tubes, no preheating and post-heat treatment are required, but attention should be paid to controlling the temperature of the welding area to ensure the best welding quality.
What are the hot working requirements for Grade 2 titanium tube?
Hot working of Grade 2 titanium tube should be carried out between 400°F and 600°F (about 204°C to 316°C). When stress relieving, it is recommended to heat to 900°F to 1100°F (about 482°C to 593°C) and perform slow cooling or forced air cooling to ensure the mechanical properties and dimensional stability of the material.
Can Grade 2 titanium tubes be used in high pressure and high temperature systems?
Grade 2 titanium performs well in high temperature and high-pressure environments, especially in the fields of oil and gas, chemical reactors, pressure vessels, etc. Its strength and corrosion resistance make it an ideal material that can remain stable for a long time under harsh working conditions.
What is the delivery time for Chalco Grade 2 titanium tubes?
Delivery time depends on the quantity, size and customization requirements of the order. Standard size Grade 2 titanium tubes are in stock and can be shipped quickly according to demand. Custom products may require additional production time. The specific delivery time can be confirmed by communicating with our sales team.
