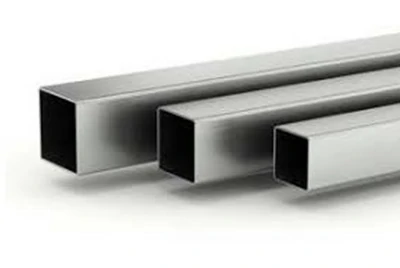

Titanium and Titanium Alloy Square Tube

Whether in extreme environments or demanding engineering applications, titanium alloy square tubes provide an ideal solution with their high strength, excellent high temperature resistance and low temperature toughness. Its light weight and corrosion resistance enable it to save metal, improve efficiency and ensure long-term and reliable service life.

Chalco Titanium provides high-performance titanium alloy square tubes, which are widely used in aerospace, oil and gas, chemical industry and high-performance racing due to their excellent strength, light weight and corrosion resistance. Whether it is seamed or seamless square tubes, our titanium alloy square tubes can meet various demanding application requirements and become the ideal choice for your project.

Titanium square tube product overview

Titanium square tube basic product types: seamless square tube, welded square tube, extruded square tube, titanium square coil, large diameter titanium square tube

Titanium square tube production technology: extrusion, drawing, welding, thermal expansion; click to view [production process and production capacity]

Technical standards are based on: ASTM B861, ASME SB861, ASTM B337, ASME SB337, ASTM B338, ASME SB338, JIS, DIN, GOST, ISO, etc.

Note: The product performance and specifications we introduce are based on ASTM standards, but can also be customized according to other standards. Welcome to consult according to your needs.

Specification range: Side (5-60) × WT (0.2-8.0) × L (mm) (Normal L: 6000mm); Click to view [Dimensions and Tolerances Reference Table]

Additional services: custom design and processing; precision cutting; welding; bending; forming; surface treatment optimization

Chalco Titanium square tube hot selling product types

Our titanium tube products include three categories: seamless square tubes, welded square tubes and extruded square tubes. We also have titanium alloy square coils and titanium alloy large-diameter square tubes with higher technical requirements. Whether it is standardized requirements or customized solutions, we can provide high-quality titanium square tube products and professional services.

Titanium and titanium alloy seamless square tube

Produced through extrusion, hole expansion and other processes, seamless titanium alloy square tubes are suitable for applications with high pressure and high strength requirements.

Production and processing:

• Raw material preparation: Select high-quality titanium ingots or billets, and make them into round tube billets after smelting.
• Extrusion molding: Use a hydraulic extruder to extrude the round tube into a square cross-section tube.
• Size Adjustment: If a smaller diameter or more precise seamless square tube is required, the tube can be drawn to the required outer diameter and wall thickness by precision drawing or rolling.

Features:

• Excellent strength and corrosion resistance
• Seamless structure to ensure uniformity and high strength of the pipe wall
• High temperature resistance, suitable for extreme environment applications

Application areas: aerospace; chemical equipment; marine engineering; oil and gas industry

Titanium and titanium alloy welded square tube

Production and processing:

• Raw material preparation: Titanium strips or plates are processed by hot rolling, cold rolling and other processes to make raw materials that meet welding requirements.
• Rolling into tubes: Roll the titanium strip to form a round tube and weld it. Common welding methods include TIG welding or MIG welding to ensure that the weld is strong and free of pores.
• Cold Working: After welding, the tube is cold worked to bring the tube to the desired size and shape.
• Heat treatment: The weld area of welded pipes usually requires heat treatment to eliminate welding stress and improve the mechanical properties of the weld.

Features:

• Flexible specification selection
• Good welding performance
• High-cost performance, suitable for large-scale production

Application areas: heat exchangers; industrial pipelines; building structures; automotive industry

Titanium and titanium alloy extruded square tube

Production and processing:

• Raw material preparation: Select high-quality titanium alloy ingots or billets, melt them, and forge them into the required shape.
• Die Extrusion: A high temperature extrusion process is used to extrude the titanium alloy billet through a die with a square cross section.
• Drawing or Straightening: After extrusion, the tube will go through a drawing or straightening process to precisely adjust the size and maintain the straightness of the tube.

Features:

• Precision molding, high dimensional accuracy
• Excellent surface quality
• High-precision processing capability, suitable for complex shapes

Application areas: aerospace; precision instruments; medical equipment; high-end decoration

Titanium and titanium alloy square tube coil

Features:

• Large surface area, good heat exchange performance
• Excellent corrosion resistance, suitable for harsh environments

Application areas: Chemical industry; Pharmaceutical industry; Food processing; Air conditioning and heat exchange systems

Large diameter titanium and titanium alloy square tube

Features:

• Large diameter design, suitable for applications with high flow and high strength requirements
• High strength and lightweight
• It is extremely corrosion-resistant and can adapt to harsh environments such as seawater and chemical media.
• Good welding and processing performance, suitable for the manufacture of complex structures

Application areas:

• Pipeline systems for the oil and gas industry
• Marine engineering, such as submarine pipelines and offshore platforms
• Fluid delivery system for chemical equipment
• High-pressure pipelines, heat exchange systems, and other areas that require extremely high strength and corrosion resistance

All alloy series titanium and titanium alloy square tube

Chalco Titanium can produce and supply all titanium and titanium alloy square tube products under ASTM standards. The following is an introduction to the hot-selling alloy products and their features. For other alloys and products, please contact sales personnel for consultation.

Titanium tube - commercially pure titanium, CP Ti

Titanium alloy tubes - Alpha Alloy, Beta Alloy, Alpha-Beta Titanium

Other high-end titanium alloy tubes

Chalco Titanium manufacturer capabilities

Chalco Titanium has strong production capacity and advanced equipment. Every production link from raw materials to finished products adopts precision technology and innovative technology to ensure the excellence of products in performance, accuracy and appearance. In terms of quality control, we not only rely on advanced testing equipment, but also through strict testing processes to ensure that each titanium alloy square tube has high quality and reliability.

Manufacturing Strength

• Advanced production equipment: equipped with high-precision hydraulic extruders, CNC machine tools, heat treatment furnaces and other equipment to ensure the accuracy of size and shape of each titanium alloy square tube produced.
• Precision process flow: covers the complete process from titanium ingot smelting to finished titanium tube, including extrusion, drawing, welding, etc., to ensure high efficiency and reliable quality in each link.
• Multifunctional heat treatment: We use advanced heat treatment processes, including annealing, straightening, etc., to effectively eliminate material stress and improve the mechanical properties of titanium alloy square tubes.
• Surface treatment technology: Surface polishing, frosting and other processes are used to improve the appearance quality and corrosion resistance of titanium alloy square tubes to ensure that they can adapt to a variety of complex application environments.

quality assurance

• Chemical composition analysis: High-precision instruments are used to test chemical composition to ensure compliance with international standards (such as ASTM, ASME) and customer requirements.
• Precise dimensional inspection: Use precise dimensional measurement tools to ensure that the product meets the design requirements and complies with application standards.
• Mechanical properties testing: Each batch of products is evaluated for mechanical properties such as yield strength and tensile testing to ensure that the product can be used stably under extreme conditions.
• Non-destructive testing: Through non-destructive testing methods such as ultrasonic testing, ensure that there are no defects inside the titanium alloy square tube and improve the reliability of the product.
• Pressure test: Conduct pressure tests such as air pressure test and hydrostatic test to ensure that the product can work normally under high pressure environment.
• Third-party certification: We welcome third-party testing by certification bodies such as TÜV, SGS, and DNV to ensure that our products meet various quality requirements of the global market.

One-stop shopping experience for titanium tube products and overall project solutions

We are committed to providing customers with one-stop titanium tube procurement services, from product selection to overall project solutions, to provide comprehensive support for your engineering and application needs. Whether it is standard specifications or customized requirements, we can meet them, making your procurement more efficient and convenient.

Complete alloy inventory

We have a rich stock of titanium square tubes, covering a variety of specifications and materials, including CP Ti, Grade 5, Grade 9, Ti-6Al-4V ELI, etc., to meet the diverse needs from industrial applications to medical fields. Sufficient stock and fast delivery ensure that your project progress is not delayed.

Pipe cutting services

We offer a precision square tube cutting service to meet your dimensional requirements. Using bandsaw cutting technology we can process titanium tubes from 12mm to 200mm diameter with tolerances of +/- 0.3mm and a minimum wall thickness of 20swg.

Surface processing

We offer a variety of surface processing services to meet different application needs:

• Polishing: achieve mirror effect, suitable for high-end medical and decorative fields.
• Sandblasting: Increases surface roughness to enhance coating adhesion.
• Pickling: Remove the oxide layer to ensure a clean surface.
• Anodizing: Available in a variety of colors and enhanced corrosion resistance.

Supporting accessories products

For the convenience of customers, we also provide supporting products related to titanium tubes:

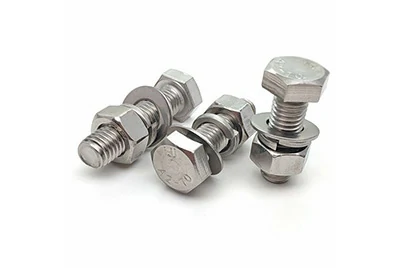

• Square tube joints, square tube angle brackets, square elbows, etc. achieve efficient connection.
• Extended products such as titanium sheets and titanium bars are used in multiple scenarios.
• Anti-corrosion coatings and sealed components improve system durability.

Industry buying guide for titanium square tube in different sectors

Titanium alloy square tubes are widely used in many industries due to their excellent performance, especially in fields with extremely strict material requirements. With years of technical accumulation and advanced equipment, Chalco Titanium is able to provide customers with customized titanium alloy square tube solutions to solve any difficulties customers encounter in the procurement process regarding size, processing, precision, accessories, etc.

Titanium alloy square tube for aerospace

Application areas: engine parts, landing gear, fuselage frames, hatches, antennas, fan panels, gas compressor blades, etc.

Buying Guide:

• High Strength and High Temperature Resistance: By using Grade 5 titanium alloy (Ti-6Al-4V), we ensure that aerospace components can withstand high strength and extreme temperature environments without performance degradation due to high pressure and high temperature.
• Customized Solutions: For each specific application, we offer customized sizes and alloys to ensure that our customers' precise requirements are met.

Titanium alloy square tube for marine engineering

Application areas: hull, propeller, underwater sensor, evaporator, heat exchanger, oil cooler, oil production platform, etc.

Buying Guide:

• Saltwater corrosion resistance: We offer titanium alloy square tubes with excellent corrosion resistance (such as Grade 2 or Grade 5), which are particularly suitable for the harsh conditions in the marine environment and ensure long-term stable use.
• High-pressure bearing capacity: Titanium square tubes have very strong pressure resistance in deep-sea operations, ensuring the safety and reliability of equipment in high-pressure environments.

Titanium alloy square tube for medical industry

Application areas: surgical implants, bone plates, screws, artificial joints, etc.

Buying Guide:

• Biocompatibility: We provide Grade 2 titanium alloy square tubes that meet medical standards to ensure that they will not cause rejection reactions when in contact with the human body.
• Precision machining and dimensional accuracy: We have high-precision machining capabilities to ensure that the size and surface quality of titanium square tubes meet the strict requirements of medical devices.

Titanium alloy square tube for chemical engineering

Application areas: flat plate heat exchangers, flat plate condensers, cooling towers, chlorination tanks, etc.

Buying Guide:

• Corrosion resistance and high temperature resistance: In chemical processing environments, the titanium square tubes provided by Chalco Titanium have extremely strong acid and alkali corrosion resistance and high temperature resistance, suitable for various chemical reactors and storage tanks, ensuring the long-term and stable operation of the equipment.
• Precision cutting and customization service: We provide precision cutting service according to the specific needs of customers, and can customize the length and specifications on demand to reduce the trouble encountered by customers during the installation process.

Titanium alloy square tubes for ships and containers

Application areas: pipelines, submersibles, gas cylinders, etc.

Buying Guide:

• Corrosion and pressure resistance: Chalco Titanium square tubes can resist seawater corrosion and have excellent pressure resistance, which is particularly suitable for the use of ships and submersibles.
• Flexible supply chain management: We have flexible production and supply capabilities and can deliver goods in a timely manner according to project requirements to avoid customers' project progress being affected by supply problems.

Titanium alloy square tube for automobile industry

Application areas: bicycle and automobile exhaust pipes, cooling pipes, electroplating equipment, etc.

Buying Guide:

• Lightweight and high strength: Titanium alloy square tubes have very light weight and extremely high strength, and are suitable for parts that reduce weight and improve performance, such as automobile and bicycle exhaust pipes.
• Fast delivery and customized services: We provide customers with tailor-made solutions, including fast delivery and precise size requirements, to ensure your production line runs smoothly.

Titanium alloy square tubes for energy and thermal engineering

Application areas: condensers, heat exchangers, engine parts, etc.

Buying Guide:

• High temperature tolerance and efficient heat transfer: Titanium alloy square tubes can withstand high temperature environments and have excellent heat transfer performance. They are suitable for heat exchangers and condensers in energy and thermal engineering.
• High quality assurance: We strictly control the production process and quality standards to ensure that each titanium alloy square tube can operate stably under high temperature and high pressure conditions.

FAQs on purchasing titanium square tubes

Q1: How to choose the appropriate titanium square tube model?

If corrosion resistance is required, Grade 1 and Grade 2 are recommended for use in chemical equipment and marine environments.

For applications that require higher strength and lightness, such as aerospace and medical devices, Grade 5 (Ti-6Al-4V) can be selected.

For extreme environments or high-performance equipment, it is recommended to choose high-end titanium alloy tubes, such as Ti-6Al-6V-2Sn or Ti-15V-3Cr-3Al-3Sn.

Q2: How to determine the specifications of titanium square tubes?

The specifications (outer diameter, wall thickness, length) of titanium square tubes should be determined according to the project design requirements. If you are not sure of the required specifications, our technical team can provide you with professional advice and support customized services to meet special needs.

Q3: How to choose a titanium square tube supplier?

The following points should be noted when choosing a titanium square tube supplier:

• Certification: Ensure that suppliers meet international quality standards such as ISO or ASTM.
• Product range: Give priority to suppliers with a full range of products to facilitate one-stop purchasing.
• Production capacity: Suppliers should have strong production capacity to meet large-volume or customized needs.
• Service support: Good pre-sales consultation and after-sales service are important considerations.

Q4: How long is the delivery time of titanium square tubes?

Conventional titanium square tubes are usually in stock and can be shipped quickly. For customized specifications, the delivery cycle is determined by the production process and order quantity. We will provide a clear delivery commitment before placing an order.

Q5: How to ensure the quality of titanium square tubes?

Titanium square tube products strictly comply with international standards (such as ASTM, AMS, etc.) and undergo multiple quality inspection processes, including: size inspection, mechanical property test, ultrasonic flaw detection, flattening test, hydrostatic test, air pressure test, expansion test, NDT/NDE test, etc. We strictly follow the above process to ensure the quality of each titanium square tube.

Q6: What factors affect the price of titanium square tubes?

• Material: Different titanium alloys have different raw material costs. For example, the price of Grade 5 is usually higher than that of Grade 2.
• Specifications: Large diameter or thick wall titanium square tubes have higher production costs.
• Processing requirements: Customized processing and surface treatment will add additional costs.
• Market Fluctuations: Prices of titanium raw materials are subject to global market supply and demand and may fluctuate.

Q7: How to extend the service life of titanium square tubes and ensure their good performance?

In order to ensure the long-term use of titanium square tubes, regular maintenance is essential. Specific maintenance items include:

• Cleaning: Clean your pipes regularly to prevent the buildup of dirt, debris, and other contaminants that can cause corrosion.
• Inspection: Check pipes regularly for signs of damage such as cracks, dents, or corrosion.
• Lubrication: When used in high temperature or corrosive environment, lubricant should be applied to prevent wear.
• Storage: When not in use, the titanium square tube should be stored in a dry, clean environment to prevent corrosion and other damage.

Q8: How to package titanium square tubes to prevent damage during transportation and storage?

The packaging method of titanium square tube is designed to avoid damage during transportation and storage. Common packaging methods include:

• Protective packaging: Wrap with protective materials such as plastic film or bubble wrap to prevent scratches and corrosion.
• Wooden boxes: Titanium square tubes are usually packed into wooden boxes with partitions to provide additional protection.
• Pallet: Pipes are fixed on pallets for easy handling and transportation.

Q9: What documents are included in each titanium square tube package?

Each package comes with relevant documentation to ensure product traceability and quality assurance, including:

• Certificate of Conformity: Proves that the titanium square tube meets relevant international quality standards.
• Material Specification: Lists in detail the material composition, dimensions, performance and other technical parameters of the titanium square tube.

Titanium and titanium alloy square tube stock dimensions and tolerance reference

The inventory size may change slightly due to order updates. Please contact the salesperson for specific inventory information.
